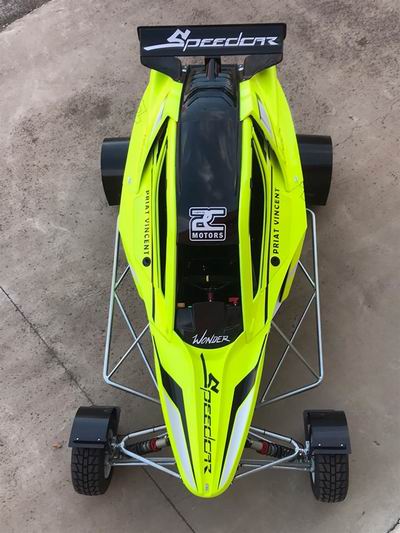

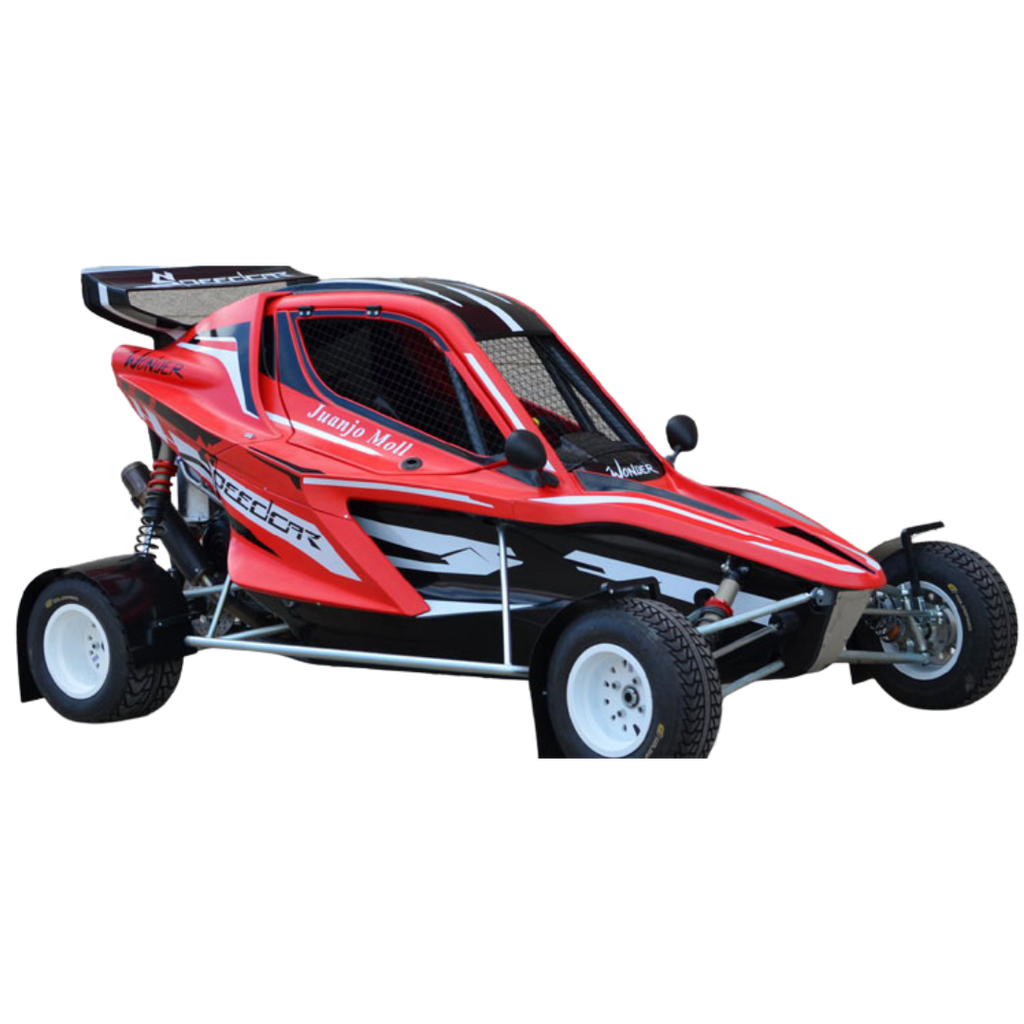

Speedcar Wonder

Speedcar Wonder

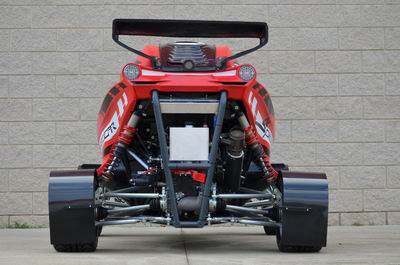

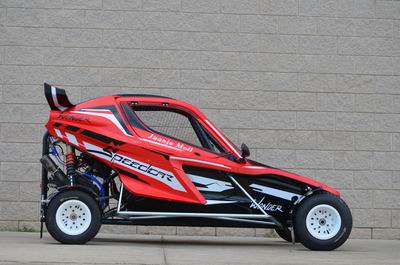

Speedcar Wonder is the popular FIA-approved crosskart model from Industrias Lahoz.

Built on a reinforced chromoly chassis and configurable with Suzuki or Yamaha powerplants, it balances lightweight agility with strong power output. Complete with sequential transmission, advanced suspension, high-grade braking components, and extensive FIA-compliance features, the Wonder is a turnkey solution for serious Autocross and Crosscar competitors.

Dimensions

Length/width/height 2650 mm / 1600 mm / 1241 mm
Wheelbase 2.040 mm
Weight (empty) 330 kg

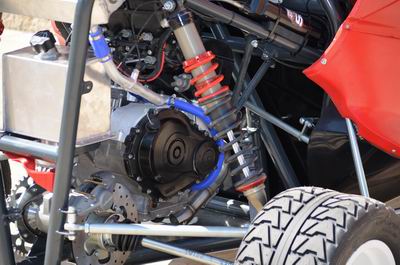

Engine

Suzuki 600cc 750cc or Yamaha MT09 unleaded fuel
Digital electronic ignition
4-2-1 exhaust with Acrapovick ilencer
Torque: 6,5 kgm
Power: 120 BHP (750 c.c.150 BHP, 1.000 c.c.119 BHP no FIA)

Transmission

Reinforced DID chain 520 ZVMX, rear wheel drive
6 speed sequential gearbox, electric reverse
Multidisc clutch

Chassis

Spaceframe structure
Steel 25CrMo4 tubes
Φ 40x2mm and Φ40x1,5mm

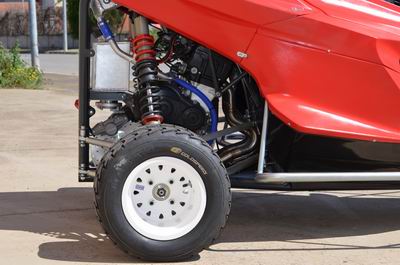

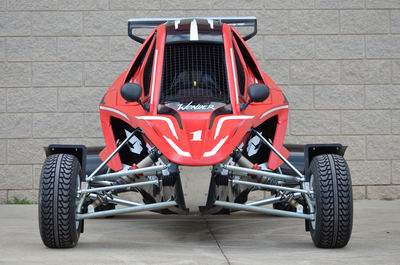

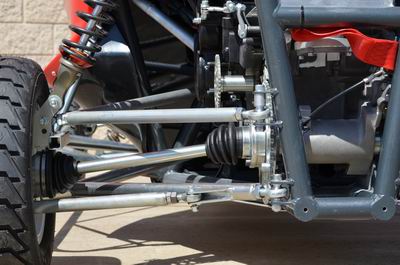

Suspension

Double wishbone
Preloaded springs
Adjustable shock absorbers

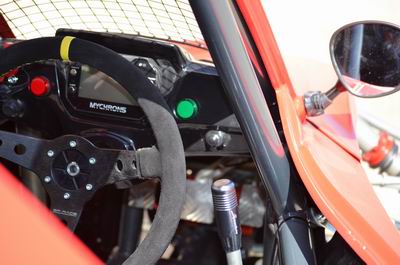

Steering

Rack and Pinion
1,2 turns from left to right

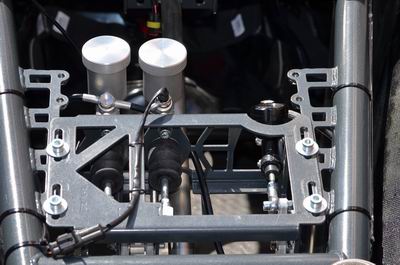

Brakes

Front: Two Φ 160 discs, double piston calipers Wilwood GP 200

Rear: One Φ240 disc, double piston calipers Wilwood GP 200

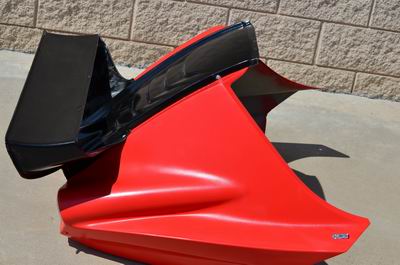

Bodywork

Thermoformed Resin
